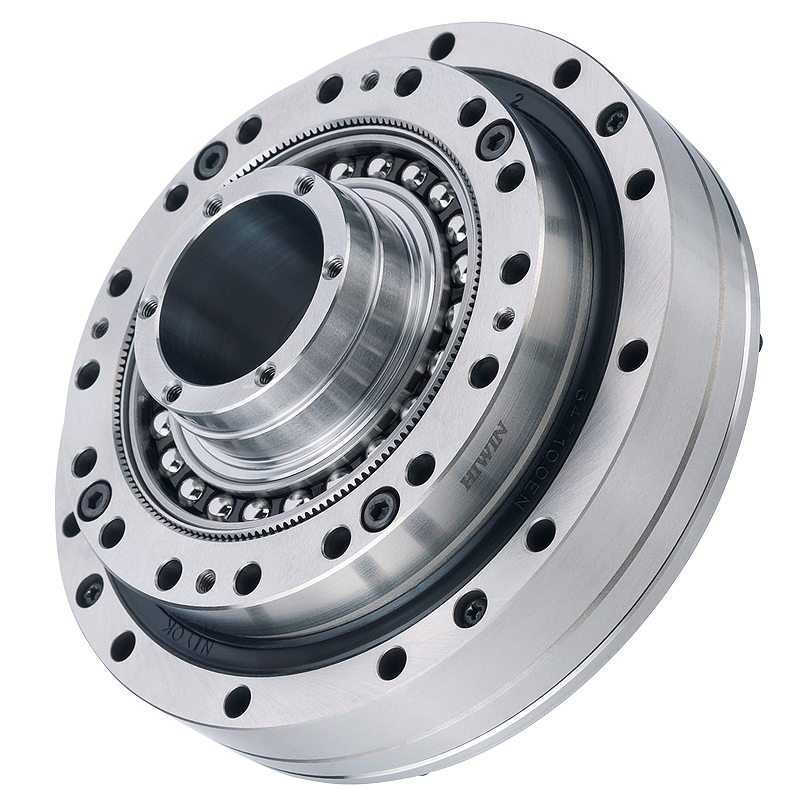

Robot Reducer WTI-PH Type
Giá bán:
Liên hệ
HIWIN WTI-PH type gear reducer has a hollow shaft and cross-roller bearings, which can withstand axial/radial loads at the same time. The large hollow shaft allows users to utilize and save space in the design structure and is suitable for high precision and high rigidity and high torque applications.
FEATURES
Compact
Compact size ; composed of flexible spline, circular spline and wave generator with simple structure and easy to install.
Flexible
High reduction ratio ; can reach high reduction ratio of 1/50~1/120 without change in dimension.
Accurate
High accuracy ; Using metal elastic deformation to drive gear transmission, its positioning accuracy can meet extremely high requirements.
Precise
Zero backlash ; Different from the traditional gear meshing method, it achieves high meshing rate through elastic deformation and eliminates backlash.
APPLIACATIONS
Panel manufacturing, Wafer handling, Wafer slicing, Automation equipment...etc.
SPECIFICATION
